With us your ship gets an optimal and safe floating position
Tailor-made stability from the market leader for anti-heeling systems
Hoppe Marine is the specialist for all types of anti-heeling systems. Our experienced marine engineers perfectly match our own hardware and software to the customer’s desired application, which is why the largest crane vessels are equipped with Hoppe solutions.
- Allocated knowledge of HOPPE, INTERING and FLUME® in the design of Anti-Heeling systems
- Experienced Naval Architects design the optimized and cost effective solution for standard and highly specialized applications
- Long reference list in large scale systems with a compensation rate of 10,000 tm/min are supplied and operate at the highest degree of reliability (up to 15 pumps sets or 4 blower units)
- Ice-heeling functionality for ice-breaking and ice-going vessels
Control Systems

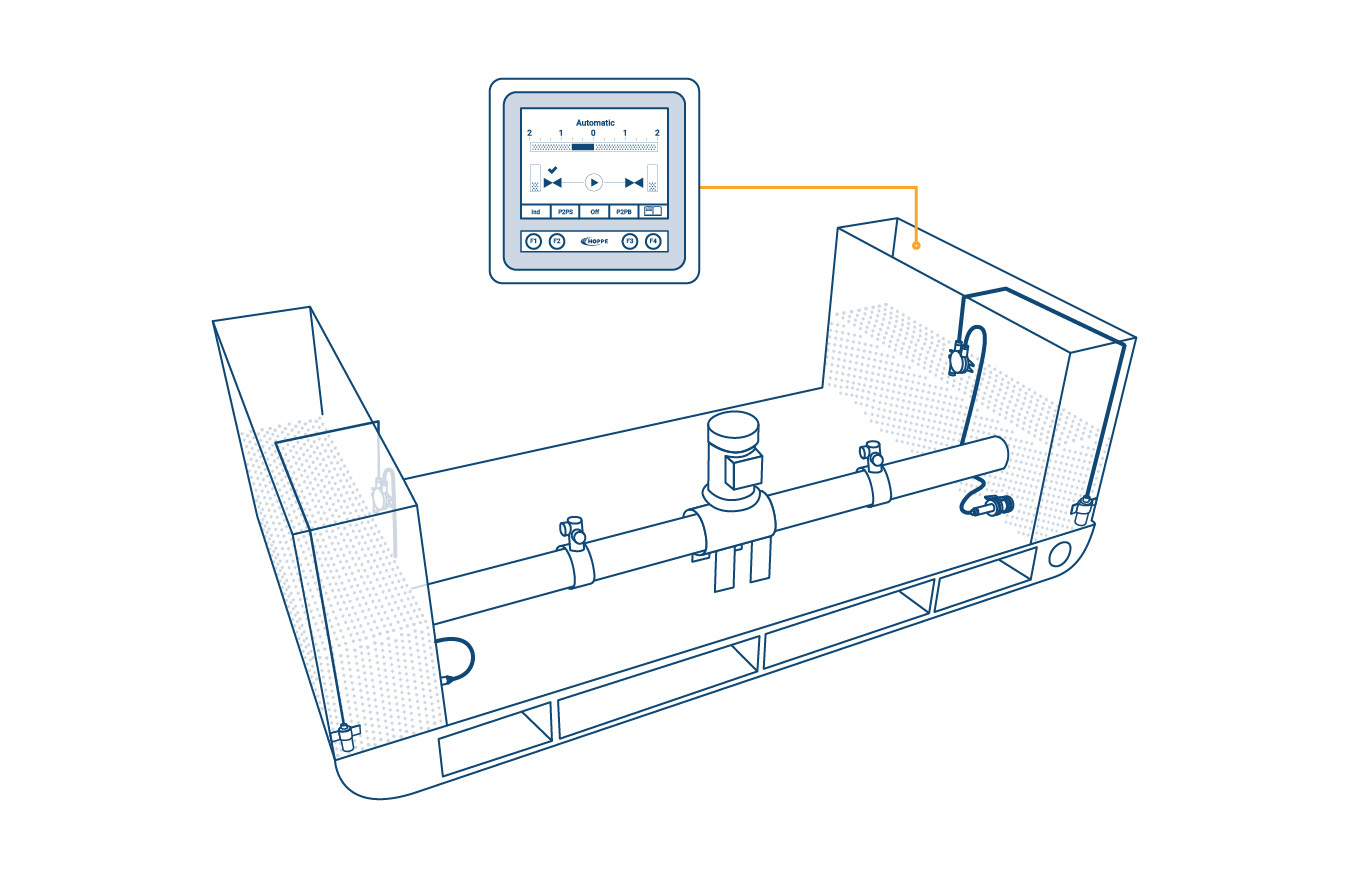

Anti-Heeling
- Reversible propeller, centrifugal, screw pumps or air-blower
- Direct start, soft start or frequency controlled electric motors
- Electric pressure sensors for remote sounding of tank content or level switches
- Inertial Measurement System or inclinometer for determination of ship’s heel angle
- Valve Remote Control System to control fluid flow with pneumatic, hydraulic or electro-hydraulic actuators
Control Systems

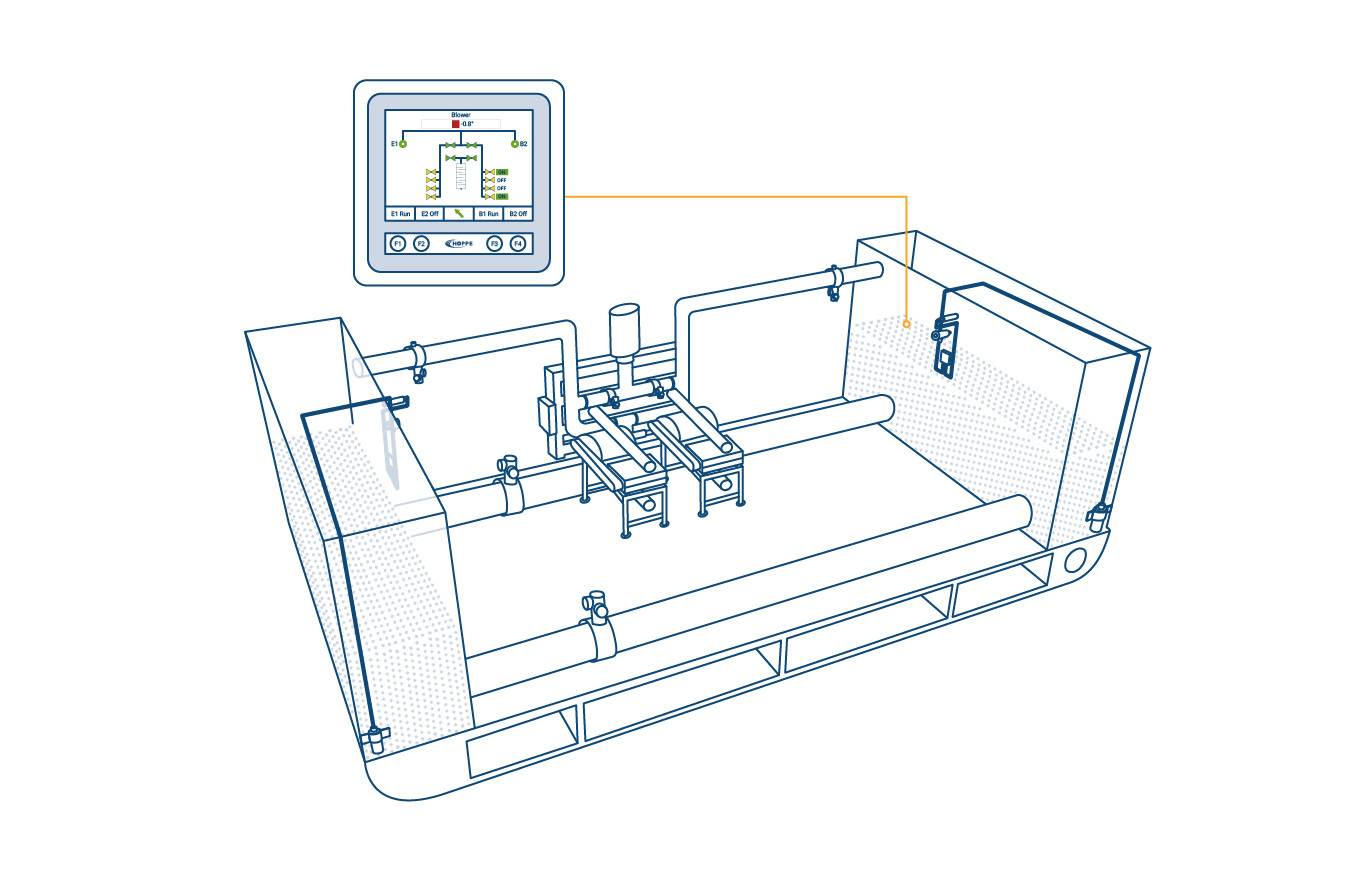

Blower Anti-Heeling
- one blower unit
200-1,800tm/min compensation rate 500-4500m³/h flow rate - several parallel operated blower units for higher flow and compensation rates
- Unlimited change of water flow direction
- Fast reaction time for immediate counter action against unsymmetrical loads

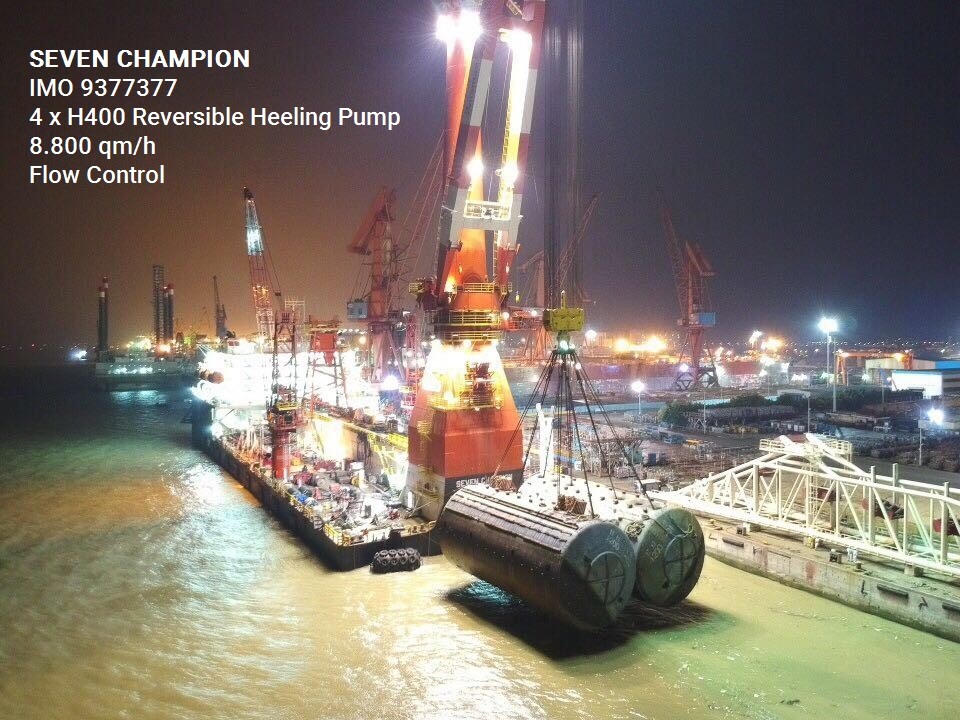

References
