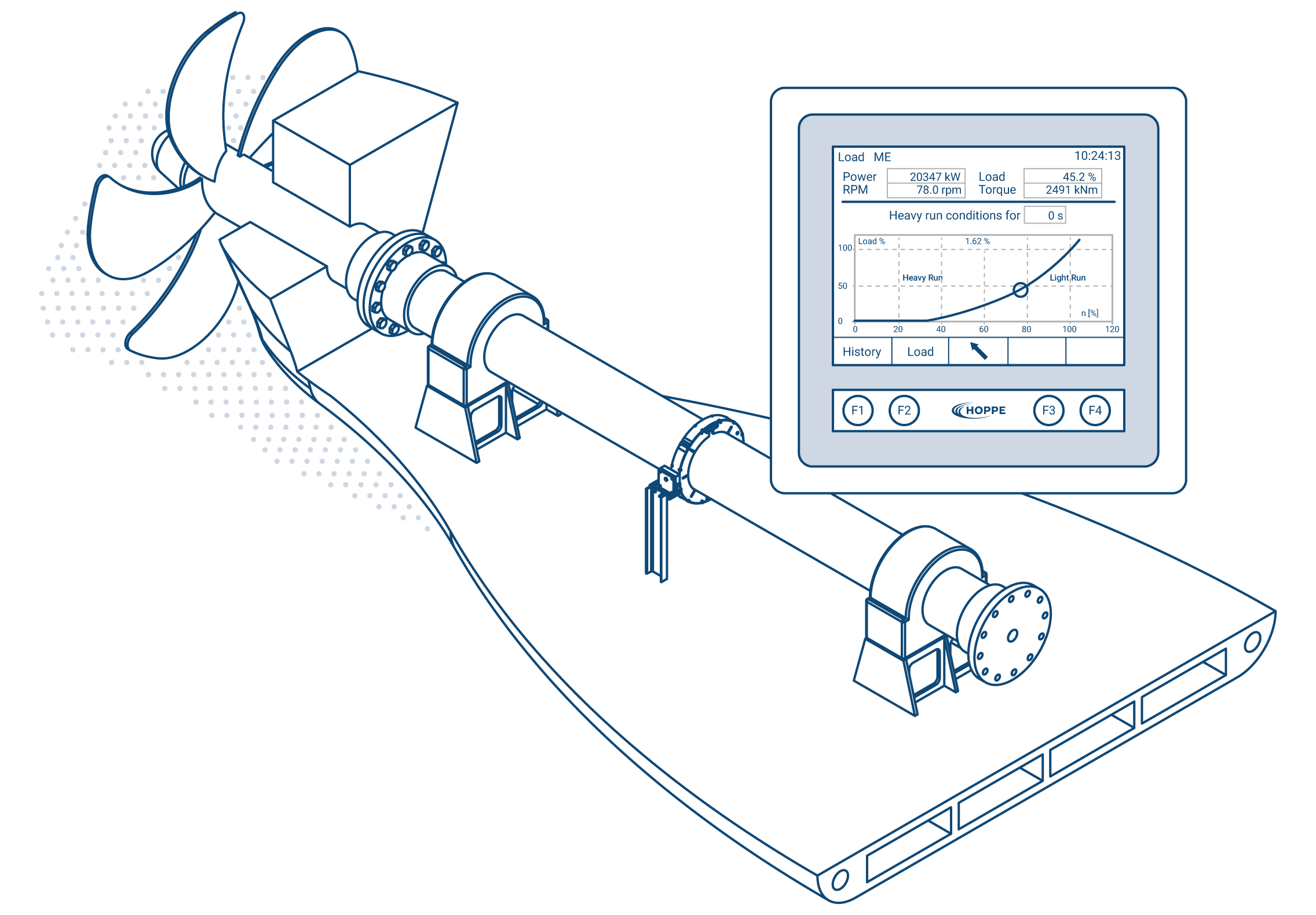

Hoppe offers a very compact and precise power measurement system that meets all requirements regarding upcoming emission savings. It is also the basis for the digitalisation of a fleet and for performance monitoring

• System with highest measuring accuracy (< 0.5% at all load levels)
• Calculates averages per hour, per day, and for a user-defined period
• Generates „heavy run alarm“ or „torque alarm“ with respect to the customer‘s settings
• Calibrated sensors with self-validation by software in operation
• Maintenance free and easy calibration by crew
• For solid and hollow shaft sizes > 150 mm ø and speed up to 800 rpm

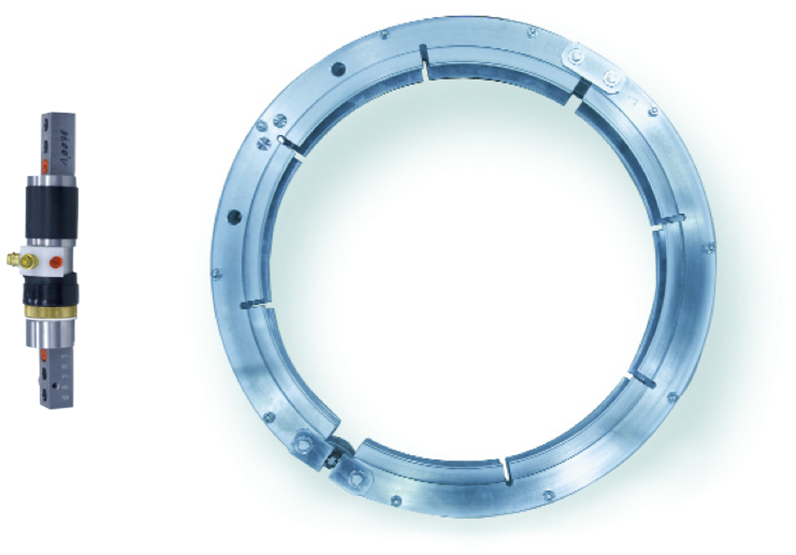

• Based on two acoustic vibrating wire sensors
• The sensors operate with a natural frequency of 600 Hz
• Due to their orientation, one sensor is stretched and the other is compressed when the shaft is twisted by torque
• In addition, the shaft rotation is measured with a gyroscope, an accelerometer and a Hall sensor
• The product of the mechanical torsion and the shaft speed is the shaft power
• The system is delivered fully calibrated from the factory
